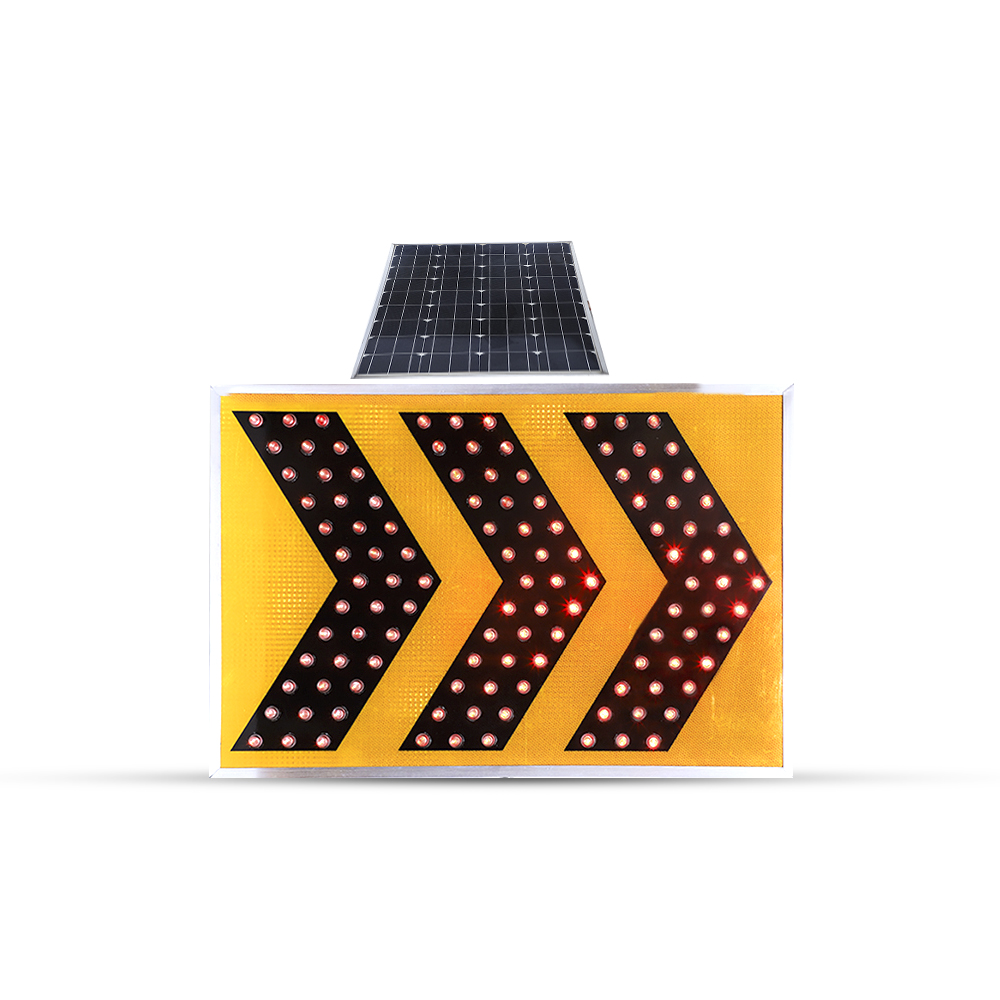

Solar Chevron Triple Arrow

Solar Chevron Triple Arrow is a high‑visibility solar‑powered guidance system designed for major diversions, lane shifts, barricades, and high‑speed road safety applications. It provides strong directional guidance using a triple‑arrow LED layout.

Solar Chevron Triple Arrow is a high‑visibility solar‑powered guidance system used for major diversions, lane shifts, barricades, and high‑speed road safety applications.
The triple‑arrow LED layout provides strong directional guidance, especially on highways, toll plazas, construction zones, and sharp diversions.

Features
Horizontal triple‑arrow LED board

High‑intensity solar‑powered LEDs

Long‑range visibility at night

Durable, weather‑resistant construction

Ideal for major diversions and barricades

Zero wiring, zero maintenance

Automatic dusk‑to‑dawn operation

Applications
Highway diversions

Toll plaza barricades

Construction zones

Lane shifting

Road closures

High‑speed curve guidance
Solar Chevron Triple Arrow is a high‑visibility solar‑powered guidance system used for major diversions…

SIZES AVAILABLE: (MM) IN SOLAR CHEVRON

• • XSCM-01: 900 x 600 x 77
  • XSCM-02: 750 x 600 x 77
  • XSCM-03: 600 x 600 x 77
  • XSCM-03: 900 x 450 x 77
  • XSCM-03: 600 x 450 x 77

Warranty – One year (off Site)

SPECIFICATIONS OF SOLAR CHEVRONS

• Solar Panel:Poly Crystalline 10 Watts
• Battery: Lifepo4 12.8 volts 5 Ah.
• Backup: 108 hours when fully charged.
• Controller Board :Xtreme Brand uses Micro controller to protect your batteries through Lower Cut and ; uppercut of voltages.It just uses 0.02Amps in stand by mode and thus gives you maximum backup.
• LED: 117-130;
• Color: Red, Yellow, Green or White.
• Display thickness: Aluminum Sheet / ACP 2 mm.
• Sheet metal: 600 mm x 900 mm x 53 mm; powder coated.
• Blinking frequency: 40 to 50 per minute as required.
• Reflective tape : High intensity tape of 3 m.

ADVANTAGES OF SOLAR CHEVERONS

• Automatic Flashing at night time.
• Each shining day of charging could last flashing for 180 hours.
• No power cost. Power charge from the sun.
• No wire and no power supply problem.
• Its convenient to install it anywhere.
